Product Details
- Size: 60m3
- Place of Origin: Shandong
- Brand Name: RHINOCEROS
- Model Number: XN7180
- Weight: 6100.000 kg

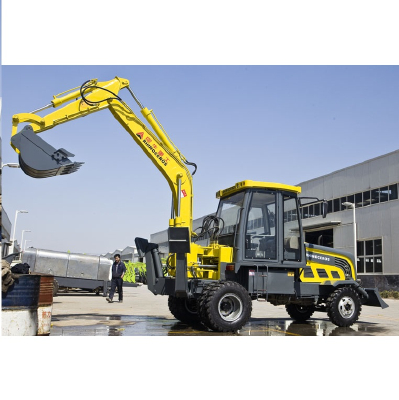

Rhinoceros 6.1ton Wheel Excavator XN7180
I.Brief Introduction
XN7180 hydraulic excavator is one of leading products in our company over the last 10 years. The accumulation sales volume is over ten thousand units. This excavator is designed reasonably with cheap price, beautiful shape, flexible operation, reliable performance.
This model is very suitable to be used in harsh working environment. It is reliable, easy to be maintained and repaired, the cost of use is competitive, the ideal partner for you.
II.Main Diameter
| General information | |
|---|---|
| Total weight | 5000 kg |
| Overall dimension | 8000x2300x2900 mm |
| Dimension of cab (LxWxH) | 2500x1700x1600 |
| Mould board dimension | 1830x490 |
| Turning radius | 3500 mm |
| Backhoe bucket capacity | 0.2-0.3 cbm |
| Fuel consumption | 224 (g/kw.h) |
| Wheelbase | 2530 |
| Wheel tread | 1160 |
| Ground clearance | 240 mm |
| Engine | |
|---|---|
| Model | YTO ( YT4105G66L-4) |
| No. of cylinders, type | 4 cylinders in line, water cooled |
| Bore and stroke | 102x120 (mm) |
| Displacement | 3.261L |
| Rated power/rotating speed | 51.5 kw/74.9kw / 2200rpm |
| Transmission system | |
| Hydraulic torque converter | XINIU |
| Drive Method (2 x 4 or 4 x 4) | 4x2 |
| Speed | |
| Gears | 4 forward 1 reverse |
| Max. speed | 40 km/h |
| Hydraulic system | |
| Hydraulic Pump | Single gear pump |
| Flow rate | 63 L/min |
| Pilot joystick handler | JEIL brand (import from south korea) |
| Multitandem valve | RUILONG brand |
| Pilot pump | Gear pump |
| Max flow | 10L/min |
| Voltage | 24 V |
| Front wheels (size & ply rating) | Front: 7.50-16 |
| Rear wheels (size & ply rating)） | Back: 8.25-16 |
| Diesel oil tank | 120 L |
| Hydraulic oil tank | 90 L |
| Cooling fluid | 10 L |
| Engine oil capacity | 7.5 L |
| Backhoe part | |
| Backhoe bucket width | 550 mm |
| Backhoe bucket weight | 185 kg |
| Maximum outrigger width (extended) | 2350 mm |
| Minimum outrigger width (transport) | 2000 mm |
| Operating range | |
| Backhoe | |
| Boom length | 3100 |
| Bucket arm length | 2100 |
| Maximum dumping height | 4390 mm |
| Maximum bucket reach | 6080 mm |
| Maximum digging depth | 3600 mm |
| Maximum digging distance | 5800 mm |
