- Size: 55M3
- Place of Origin: Shandong
- Brand Name: RHINOCEROS
- Model Number: XN780
- Weight: 6200.000 kg

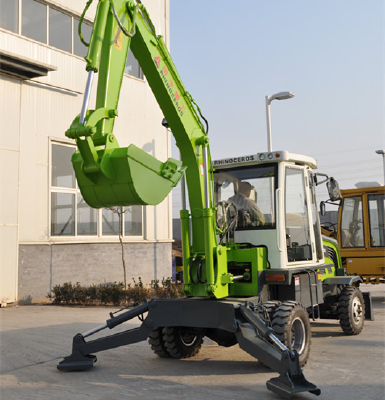

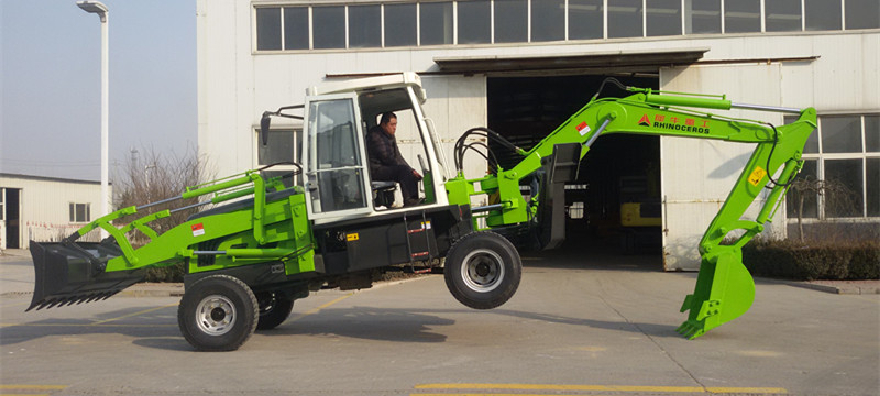

Rhinoceros 7ton Backhoe Loader XN780-2L with CE Certificate
I.Brief Introduction
1. The main pumps are from world famous brand. Redesigned hydraulic circuit makes the operating more easy, and the failure rate decreased sharply.
2. The most mature hydraulic walking system is selected for its strong driving force and easy and fast to operate.
3. Big horse power could guarantee good pulling capacity. Double-pipeline four calipers brake is stable and safe.
4. Wide operation space has good vision and comfortable seat.
5. Reasonable dynamic match and excellent overall performance with superior operation efficiency.
6. Comfortable operation environment, adjusted seat,
7. Optimized design of Power, electric, hydraulic and laminate system. Easy to maintain and repair.
8. We could add gyrator and broken quartering hammer etc. according to customers’s requirements.
9. Each rear support bracket is cased according tress analysis and fatigue testing, it is better to unti-break, then the service time is longer.
10. The key parts of Bucket bar is reinforced, the surrounding of shaft housing are cast parts, which prolong the strength and the life span.
II.Main Diameter
General information | |
---|---|
Total weight | 5800 kg |
Overall dimension | 9000x2300x2900 mm |
Turning radius | 5000 mm |
Backhoe bucket capacity | 0.2-0.3 cbm |
Loading bucket capacity | 0.7-0.8 cbm |
Fuel consumption | 224 (g/kw.h) |
Wheelbase | 2600 |
Wheel tread | 1160 |
Ground clearance | 260 mm |
Engine | |
---|---|
Model | YTO |
No. of cylinders, type | 4 cylinders in line, water cooled, turbo charged |
Bore and stroke | 102x120 (mm) |
Displacement | 3.261L |
Rated power/rotating speed | 74.9kw / 2200rpm |
Transmission system | |
Hydraulic torque converter | XINIU |
Axle | KAICHUANG brand |
Drive Method | 4x2 or 4x4 |
Speed | |
Gears | 4 forward 1 reverse |
Max. speed | 40km/h |
Hydraulic system | |
Hydraulic Pump | Single gear pump |
Flow rate | 126 L/min |
Pilot joystick handler | JEIL brand (import from south korea) |
Main valve | RUILONG brand |
Pilot pump | Gear pump |
Voltage | 24 V |
Front wheels (size & ply rating) | 9.00-20 |
Rear wheels (size & ply rating)) | 9.00-20 |
Diesel fuel tank | 120 L |
Hydraulic system fluid | 125 L |
Backhoe part | |
Backhoe bucket width | 560 mm |
Backhoe bucket weight | 185 kg |
Maximum outrigger width (extended) | 2400 mm |
Minimum outrigger width (transport) | 2020 mm |
Loader part | |
Bucket width | 2000 mm |
Bucket weight | 260 kg |
Operating range | |
Loader | |
Maximum bucket reach | 3500 mm |
Maximum loading height | 3200 mm |
Maximum loader dumped height | 2550 mm |
Maximum digging depth | 15 mm |
Backhoe | |
Boom length | 3100 |
Bucket arm length | 2100 |
Maximum dumping height | 4390 mm |
Maximum bucket reach | 6080 mm |
Maximum digging depth | 3400 mm |
Maximum digging distance | 5800 mm |
