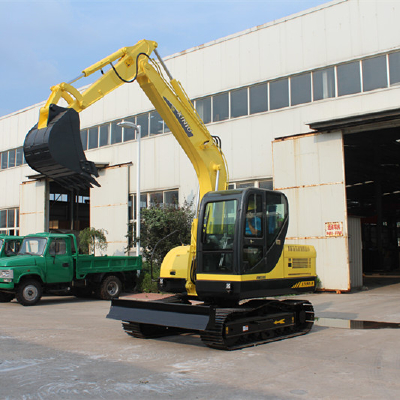

Rhinoceros 9 ton Crawler Excavator  XN90-8 with CE Certifcate

Rhinoceros 9 ton Crawler Excavator XN90-8 with CE Certifcate

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 300 Units per Month
  • Port: China port
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Unit/Units
| Factory
Experience:2003-12-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  7200 x2370x2750mm
  • Place of Origin:  Shandong
  • Brand Name:  RHINOCEROS
  • Model Number:  XN90-E
  • Weight: 9000.000 kg

Rhinoceros 9 ton Crawler Excavator  XN90-8 with CE Certifcate

I.Brief Introduction

1. Adopting original YANMAR engine with low fuel consumption, low noise, environmental protection and high efficiency.
2. Imported hydraulic system ensures high reliability.
3. Easy to read LCD monitoring system helps reduce maintenance and ownership cost
4. Easy access to service and maintenance points reducing downtime.
5. Spacious cab with air conditioner offers a comfortable working environment. Full digital monitor dynamically show the working condition of the machine.

II.Main Diameter

Engine


Model

YANMAR4TNV-98T

No. of cylinders

4 cylinders in line,   water cooled

Bore and stroke

98x110 (mm)

Displacement

3.319L

Rated power

57.5KW

Max. torque

286.9 N.m / 1500rpm

Compression ratio

18.1

Lubricating method

Pressure lubrication   and splash lubrication

Fuel consumption

≤ 244 g/kwh

Engine oil consumption

≤ 0.8 %

Travel system


Travel motor

EATON brand

Model

JMV-47/27-01-VBC-RJ-53

Travel brake

hydraulic disc brake

Parking brake

oil release

No. of track shoes

2x40

Width of track shoe

452 mm

Distance between two   track shoes

1430 mm

Travel speed

3 (Km/h)

Maximum tractive force

62 KN

Grade ability

70% (30 degree)

Ground clearance

420mm

Balance weight to   ground

770mm

Hydraulic system


Main hydraulic pump

MOIFLUID brand

Model / type

1P0750000 Piston pump

Max. discharge flow

74 ml/r

Speed

2200 rpm

Pressure

32 Mpa

Main Valve

MOIFLUID brand

Model

1V1751480

Pilot control pump

STAUFF from German

Hydraulic pipes

MANULI brand fromItaly

Hydraulic pressure

28Mpa

Swing system


Main hydraulic pump

EATON brand

Model

JMF-43-01-VBR-RK-19

Swing speed

12 rpm

Cab controls


 Cab

New ergonomic cab,   which strengthens the structure of the entire stamping, with the feature:   strong impact resistance, vibration damping pads, absorbing vibration,   comfortable cab with high quality air conditioner, front window can move   down, expand driver’s vision

Boom, Arm Bucket


 Boom cylinder

85/50-855x1365

Stick cylinder

100/60-910x1365

Bucket cylinder

90/55-680x1070

Refilling capacity   & lubrications


Fuel tank

240L

Cooling system

20L

Engine oil

13L

Volume of Hydraulic   tank

130L

Bucket


Mode

backhoe bucket   (wear-resisting plate)

Capacity

0.35 cbm

No. of teeth

4

Width of bucket

750 mm

Depth of bucket

570 mm

Digging force


Arm length

2330mm

Boom Length

3820mm

Bucket digging force

63 KN

Arm digging force

46 KN

Operating weight and   working ranges


Operating weight

9000Kg

Dimension

6500 x2370x2750 mm

Height of cab

1600 mm

Length of moldboard

2320 mm

Width of moldboard

400 mm

Working Range

Max. digging range

6700 mm

Max. digging depth

3980 mm

Max. digging height

6500 mm

Max. loading height

4400 mm
