- Size: 7200 x2370x2750mm
- Place of Origin: Shandong
- Brand Name: RHINOCEROS
- Model Number: XN90-E
- Weight: 9000.000 kg

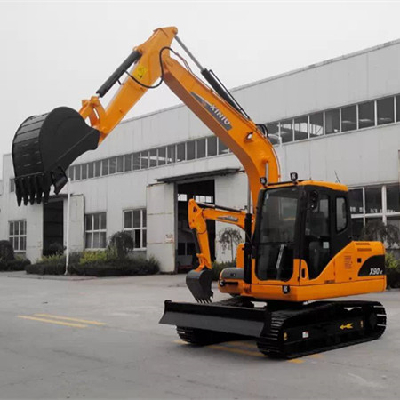

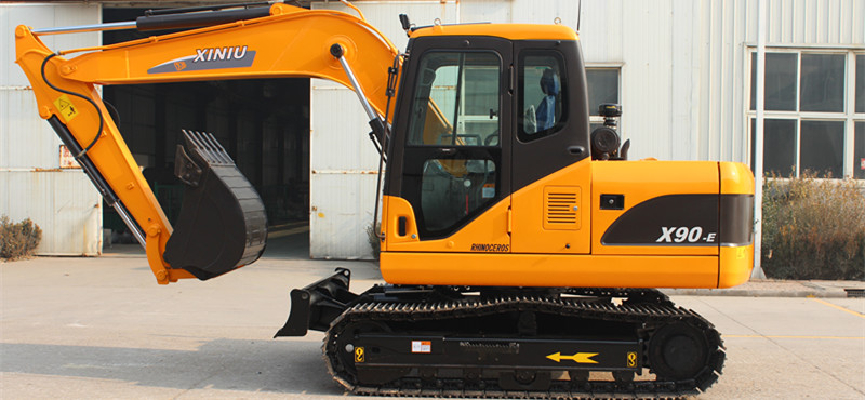

Rhinoceros 9 ton Crawler Excavator XN90E with CE Certificate
I. Brief Introduction
Using YANMAR engine, in-line four strokes, low fuel consumption, environmental protection, convenient repair and maintenance.
Electronic monitoring using a dot matrix type advanced multifunctional large screen liquid crystal display, electronic throttle control system has the function of throttle control, automatic idle speed, overheat protection, speed acquisition.
Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
Imported original hydraulic parts, quality is reliable and stable, working efficiency is high.
Based on the strong and durable key parts and international quality chassis configuration, operation stability is stronger.
The machine adopted new type cab with wide field of vision, new seat, and automatic regulated air conditioning system, make the operation flexible and comfortable.
The concept of low noise, ensure the operator to manipulate more comfortable and safety.
II. Main Diameter
MAIN DIMENSIONS | UNIT | X90-E |
---|---|---|
Operating Weight | kg | 9000 |
Overall Dimension | mm | 7200 x2370x2750 |
Cab Dimension | mm | 1500x1000x1650 |
Bucket Capacity | cbm | 0.38 |
SYSTEM CONFIGURATION | ||
Engine Type | YANMAR(4TNV94L-SFN) | |
Rated Power/Speed | kw | 39.5 |
No. of Cylinders/Type | 4 cylinder / in line | |
Starting Type | Electric 12V | |
Hydraulic Main Pump | Moufluid / SKS | |
Ground pressure | kg/cm2 | 0.45 |
Hydraulic System Pressure | MPa | 28 |
Hydraulic System Flow | L/min | 160 |
Pilot Pump | Moufluid / SKS | |
Valve | EATON / NORTH | |
Swing Motor | EATON | |
Max Swing Speed | r/min | 10.5 r/min |
Travel Motor | EATON | |
Speed | km/h | H: 4.5km/h ; L: 3.0/km/h |
Bucket Digging Force | Kn | 63 |
Arm Digging Force | Kn | 46 |
Working Fuel Consumption | L/h | 8.16 |
Diesel Oil Tank Capacity | L | 240 |
hydraulic Oil Tank Capacity | L | 130 |
OPERATION RANGE | ||
Boom Length | mm | 3800 |
Arm Length | mm | 1824 |
Radius to Rear End | mm | 1880 |
Ground Clearance | mm | 300 |
Ground pressure | Kg/cm2 | 0.45 |
Upper structure | 360 degree in either direction | |
Blade Dimension | mm | 2320x400 |
Max Digging Height | mm | 6600 |
Max Dumping Height | mm | 4600 |
Max Digging Depth | mm | 4430 |
Max Digging Radius | mm | 6640 |
Standard Machine With A/C | A/C | Standard |
Packing Way | 2 unit in a 40HQ | |
Passed Certificates | CE ISO |
