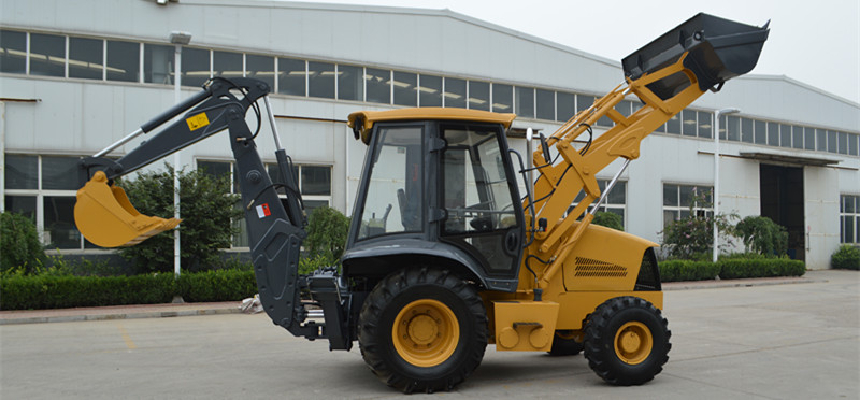

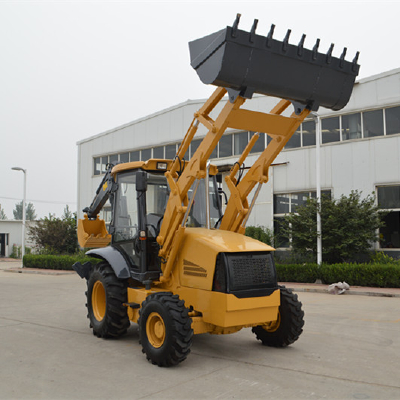

Rhinoceros Backhoe Loader XNWZ74180 -4L(4WD)
I.Brief Introduction
1. Original CUMMINS engine (B3.3), 60kw, Low fuel consumption, low noise and strong power, more efficient and economical, the emission meet to EURO 3 standard.
2. USA PERMCO brand, high quality, long service.
3. USA EATON pilot joystick handler，ensure the accuracy and flexibility of each movement.
4. International famous brand front & rear axles same to CARRARO helps steer easily, efficient hydraulic torque converter provides ease and great comfort of operation.
5. The super cab is designed with principle of ergonomics to provide the operator a low-noise environment, and possesses fine shock absorption.
6. Hydraulic accessories for option: 4-in-1 bucket, Quick coupling plate, Quick hitch, Driller, Fork, Hammer, Narrow bucket, Tilt bucket.
II.Main Diameter
| General information | |
|---|---|
| Total weight | 7000 kg |
| Overall dimension | 7400x2170x2950 mm |
| Turning radius | 3500 mm |
| Backhoe bucket capacity | 0.25-0.3cbm (800kgs) |
| Loading bucket capacity | 1.0 cbm (2200kgs) |
| Engine | |
|---|---|
| Model | Imported CUMMINS (B3.3) |
| No. of cylinders, type | 4 cylinders in line, water cooled |
| Bore and stroke | 95x115 (mm) |
| Displacement | 3.3L |
| Rated power/rotating speed | 60 kw |
| Transmission system | |
| Hydraulic torque converter | XN280 |
| Drive Method | 4x2 or 4x4 |
| Speed | |
| First forward | 6 km/h / 12km/h |
| Second forward | 14.5 km/h / 29km/h |
| First reverse | 6 km/h /12km/h |
| Second reverse | 14.5 km/h / 29km/h |
| Axle | |
| Axle type | Hub reduction axle |
| Front axle track | 2110 mm |
| Rear axel track | 1800 mm |
| Hydraulic system | |
| Hydraulic Motor | PERMCO imported from America |
| Model | 3020 |
| Flow rate | 80 L/min |
| Working pressure | 22.5 Mpa |
| Pilot joystick handler | EATON brand |
| Multitandem valve | RUILONG brand |
| Electrical system | |
| Voltage | 12 V |
| Alternator capacity | 4 kw |
| Battery capacity | 210 Ah |
| Front wheels (size & ply rating) | 21.5-16 |
| Rear wheels (size & ply rating) | 15-24 |
| Diesel fuel tank | 125 L |
| Hydraulic system fluid | 132 L |
| Backhoe part | |
| Backhoe bucket width | 560 mm |
| Backhoe bucket weight | 185 kg |
| Maximum outrigger width (extended) | 2900 mm |
| Minimum outrigger width (transport) | 2020 mm |
| Loader part | |
| Bucket width | 2030 mm |
| Bucket weight | 350 kg |
