- Size: 60m3
- Place of Origin: Shandong
- Brand Name: RHINOCEROS
- Model Number: XN65-4L
- Weight: 6100.000 kg

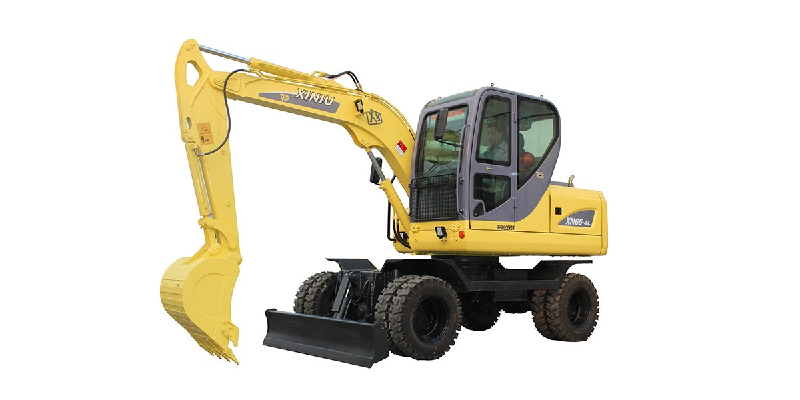

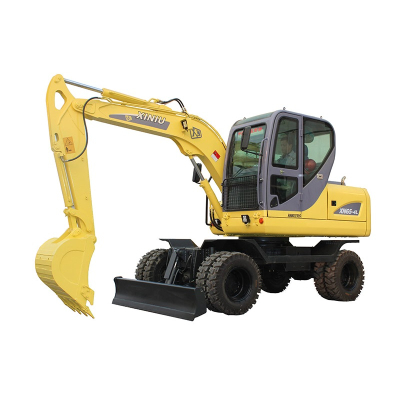

Rhinoceros Wheel Excavator XN65-4L
I.Brief Diameter
1. Adopting world famous brand engine, with strong driving force, low noise, low oil consumption, and more reliable.
2. Adopting energy saving hydraulic system, main hydraulic parts using original world famous brand to guarantee the good quality and work performance. Low energy consumption, fast response speed, precision control, small impact, can keep strong mining capacity and excellent operation efficiency.
3. Using high performance radiator, unobstructed air flow, fast flow speed, good hear dissipation effect, stable working temperature, and long service life.
4. The welding of machine main structures use automatic welding robot, key parts welding flaw detection to ensure all parts in high strength, high quality, and to prolong the service life of the machine.
5. Good vibration and noise effect of the cab, both warm and cool air-conditioner, makes driving comfortable and safe.
II.Main Diameter
MAIN DIMENSIONS | UNIT | XN65-4L |
---|---|---|
Operating Weight | kg | 6000 |
Overall Dimension | mm | 5598x2035x2780 |
Bucket Capacity | cbm | 0.25 |
Wheel Base | mm | 2350 |
Wheel Tread | mm | 1580 |
Ground Clearance | mm | 260 |
Blade Height | mm | 295 |
Blade Dimension | mm | 2000x345 |
Tyre Type | 7.50-16 | |
SYSTEM CONFIGURATION | ||
Engine Type | XINCHAI(A498BZG) | |
Rated Power/Speed | kw | 48 |
No. of Cylinders/Type | 4 cylinder / in line | |
Starting Type | Electirc 24V | |
Drive Method 2WD/4WD | Mechanical 4WD | |
Hydraulic Main Pump | SHIMADZU | |
Hydraulic System Pressure | MPa | 18 |
Hydraulic System Flow | L/min | 115 |
Valve | RUILONG | |
Swing Motor | EATON | |
Max Swing Speed | r/min | 12r/min |
Travel Motor | / | |
Max Travel Speed | km/h | 35km/h |
Axle | KAICHUANG | |
Gear | F: 1-5 ; R: 1 | |
Bucket Digging Force | Kn | 42 |
Arm Digging Force | Kn | 34 |
Gradeability | degree | 35 |
Working Fuel Consumption | L/h | 6.64 |
Diesle Oil Tank Capacity | L | 120 |
Hydraulic Oil Tank Capacity | L | 110 |
OPERATION RANGE | ||
Min.Swing Radius | mm | 2552 |
Boom Length | mm | 3100 |
Arm Length | mm | 1600 |
Max Digging Height | mm | 5370 |
Max Dumping Height | mm | 3810 |
Max Digging Depth | mm | 2857 |
Max Digging Radius | mm | 5975 |
Standard Machine With A/C | AC | Optional |
Packing Way | 2 units in a 40HQ | |
Passed Certificates | CE ISO |
